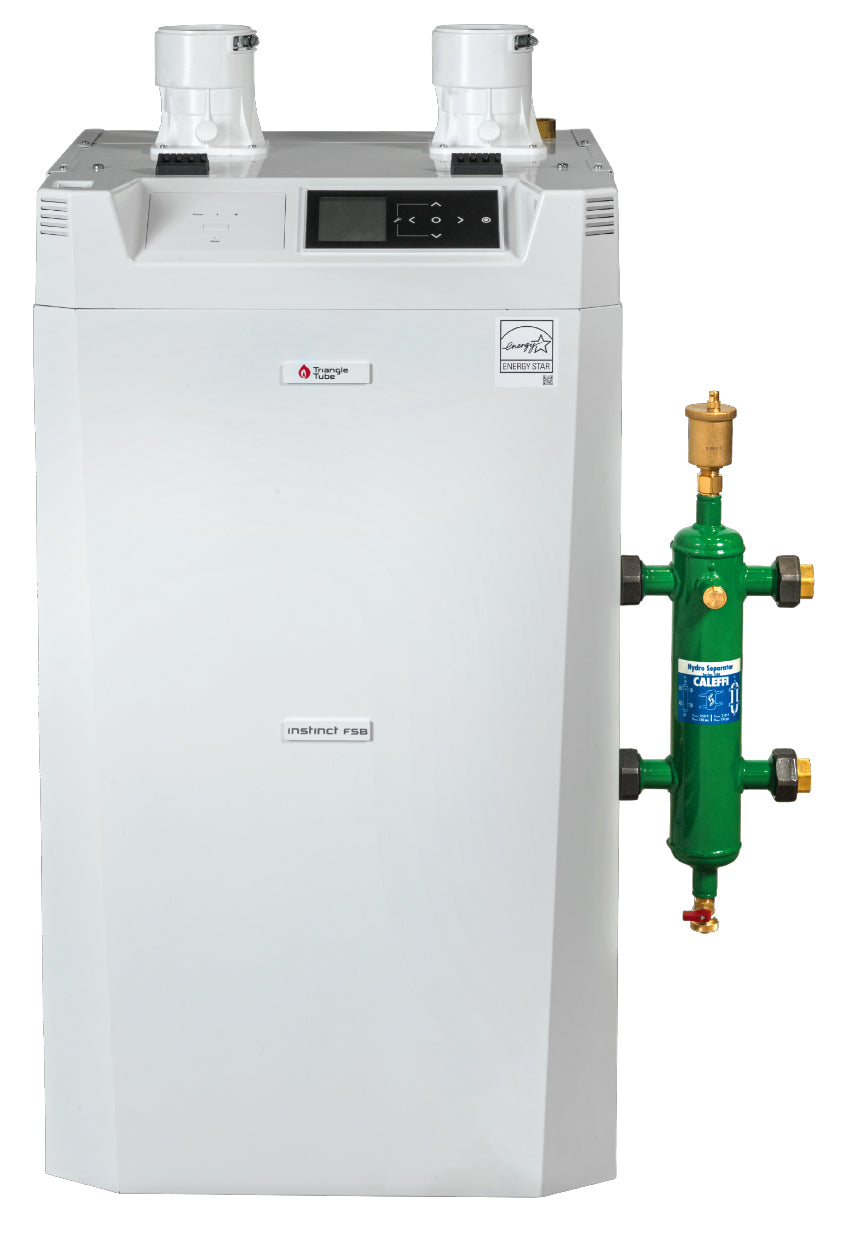

Triangle Tube INSFS199S Solo 199 Flr Boiler
Get it between - and -.
Product Description
The TRIANGLE TUBE INSFS199S Solo 199 Flr Boiler is designed for floor mount applications. This high-efficiency boiler features a turndown ratio of 8:1 and an AFUE rating of 95%. It has a DOE heating capacity of 184 MBH and a net AHRI rating of 159 MBH. The unit includes a 3/4' gas connection and 1' supply/return connections.
- Turndown Ratio: 8:1
- BTU Min Input: 24,875
- BTU Max Input: 199,000
- AFUE Rating: 95%
Product Highlights
High-efficiency floor mount boiler with robust performance and versatile installation options for residential heating systems.
Product Information
Standard Information
- Brand: TRIANGLE TUBE
- Manufacturer Part Number: INSFS199S
Technical Specifications
- Turndown Ratio: 8:1
- BTU Min Input: 24,875
- BTU Max Input: 199,000
- AFUE Rating: 95%
- DOE Heating Capacity MBH: 184
- Net AHRI Rating MBH: 159
- Water Volume Gal: 4
- Supply / Return Connections (MNPT): 1'
- Gas Connection (MNPT): 3/4'
- Vent & Air Connections: 3'
- Connection Type: NPT
- Fuel Type: NG (Field Convertible - Kit Included)
- Input Capacity: 199,000 BTU/hr
- Manufacturer: Triangle Tube
- Manufacturer ?: INSFS199S
- Mounting Type: floor
- Series: Instinct Solo
- Type: Gas Condensing Boiler
- Model Number: INSFS199S
- Fuel: NG & LP
- AHRI Net Rating (MBH): 159
- DOE Heating Capacity (MBH): 184
- Water Volume (Gallons): 4
- 2' Max Vent Length: -
- 3' Max Vent Length: 100'
- Vent/Air Connections (in.): 3'
- Supply/Return Connections (MNPT): 1'
- CH Max Flow Temp F (C): 185 (85)
- Integrated Cascade Function: up to 6
- Product Type: Boiler
- Installation Type: Floor Standing
- Combustion Type: Condensing
- Vent Type: Direct Vent
- Central Heat (CH) Max. Flow Temp. (°F/C): 185 / 85
- Connectivity: TSync WiFi
- Domestic Hot Water - DHW: No
- Input Capacity (Min. BTUs): 24875
- Input Capacity (Max. BTUs): 199000
- AFUE Efficiency %: 95
- DOE Heating Capacity (BTUs): 184000
- AHRI Net Rating (BTUs): 159000
- Gas Connection (in.): 3/4'
- Boiler Supply/Return (in.): 1'
- DHW Inlet/Outlet Connections (in.): NA
- DHW Output GPM (@70° rise): NA
- DHW Output GPM (@75° rise): NA
- DHW Output GPM (@80° rise): NA
- DHW Min. Flow Rate (GPM): NA
- DHW Max. Flow Temp (°F/C): NA
- DHW Max. Operating Pressure (PSI): NA
- Width (in.): 22
- Depth (in.): 22
- Height (in.): 41
- Certifications: ASME, Energy Star, ETL, AHRI, Low NOX
- Voltage: 110-120V
- Circuit Breaker Size (Amps): 15
- Input Modulation (BTU): 24,875 - 199,000
- DOE Rating (BTU): 184,000
- Net AHRI Rating (BTU): 159,000
- Efficiency (AFUE): 95%
- Turndown (Modulation) Ratio: 8 : 1
- Gas Supply Pressure: 5-13' WC (natural gas), 8-13' WC (propane)
- Max. Operating Pressure: 50 psi
- Vent/Air Size: 3'
- Vent Material: PVC, CPVC, PolyPropylene, St. Steel
- Power Supply: 120V, 60Hz
- Boiler Connections: 1' NPT
- Gas Connection: 3/4' NPT
- Brand: TRIANGLE TUBE
- Model: TRIANGLE TUBE INSFS199S
- MPN: INSFS199S
